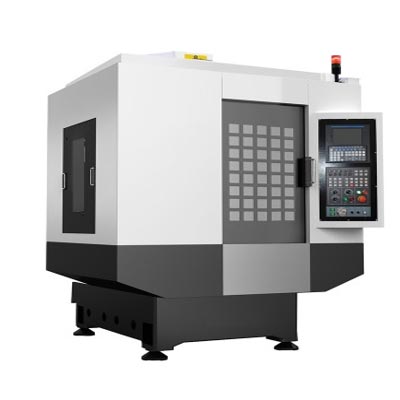

CNC Machining Center:
Machine Manufacturer’s Name: Wu Jiang
Country of Manufacture: Taiwan (R.O.C.)
Machine Model Number: TP-50E
Tuson’s Quantity of Machines: One (1)
Machine Location(s): Tuson / Jiaxing (China)
Machine Processing Size Capabilities in Millimeters (Inches):
- X-Axis Travel Range = o to 500 (o to 19.7)
- Y-Axis Travel Range = 0 to 300 (0 to 11.8)
- Z-Axis Travel Range = 0 to 460 (o to 18.1)
Machine Precision in Millimeters (Inches):
- X-Axis Positioning Accuracy: 0.005 (0.0002)
- Y-Axis Positioning Accuracy: 0.005 (0.0002)
- Z-Axis Positioning Accuracy: 0.005 (0.0002)
- Length: 0.015 (0.0006)
- Roundness: 0.01 (0.0004)
Other Machine Characteristics:
- Has a Fourteen (14) Tool Magazine
- Is Equipped with a Fourth (Rotating) Axis Function and a Tailstock Function
- Includes a Clamping Function
- Has Multiple Surfaces Processing Capability
Tuson possesses a wide variety of high-quality, high-precision equipment and machinery for manufacturing. To view our complete listing of production machinery and equipment, please click on the link below:
